Architectural Evolution and Modernization of the Big Data Platform

100%

Part one: Architectural Evolution

One. The Core Platform Evolution Timeline (twenty sixteen to twenty twenty-four)

. Twenty sixteen (Foundational Operational Launch): The zero nine platform achieved full functional maturity, onboarding its first production clients. At its architectural core sat the GraphCube (Live Server), a proprietary in-memory columnar database with an embedded rule-processing engine. To execute complex forecasting algorithms, the platform integrated an R Server. This enabled configuration consultants to utilize mature open-source R libraries and write declarative code via o nine's proprietary language, IRPL, supplemented by procedural R compute loops.

. Twenty eighteen (The Big Data Pivot - BDP one point zero): Zero nine contracted with a massive global retail client whose supply chain data requirements exceeded legacy processing limits by twenty times to fifty times. Because the GraphCube ran on a single monolithic Windows server instance, it could not natively parse datasets of this size. This constraint catalyzed the Big Data Platform (BDP) one point zero, embedding the Hadoop and Hive ecosystems into the architecture. Billion-row tables (e.g., daily store-item transaction logs) were stored as Hive files. Small, highly aggregated slices were streamed into the GraphCube engine to drive front-end UIs and execute supply chain solvers, while results were written directly back to the Hadoop Distributed File System (HDFS).

. Twenty nineteen (Distributed Computation Integration): As clients demanded the ability to run custom Python models directly on the platform, standalone Python servers proved incapable of scaling to match large retail use cases. To achieve distributed execution, o nine integrated Apache Spark into BDP one point zero, allowing custom user-defined functions (UDFs) to execute across a scalable cluster of compute nodes. Concurrently, Integration two point zero was developed to manage enterprise API data transmission and real-time data ingestion.

. Twenty twenty-four (The Modern Cloud-Native Paradigm - BDP two point zero): Zero nine rolled out Big Data Platform (BDP) two point zero, representing a major structural shift. While BDP one point zero remains supported for legacy installations, new implementations are exclusively deployed on BDP two point zero. Apache Spark remains the core computation framework for PySpark execution, but the monolithic Hadoop, Hive, and HDFS frameworks have been completely replaced by Delta Lake operating directly on top of cloud object storage.

Two. The Decommissioning of Legacy HDP (Hadoop)

The transition from BDP one point zero (Hortonworks Data Platform) to BDP two point zero was driven by critical limitations in legacy Hadoop-based architectures:

. Complex and Brittle Infrastructure: The legacy architecture relied on a complex, fragile web of legacy open-source tools-including HDFS, Apache Zookeeper, Apache Ambari, Apache YARN, and Apache Hive-which required immense engineering management overhead.

. Severe Performance Bottlenecks: High-volume workloads suffered from severe processing and read/write performance bottlenecks occurring at both the raw storage and live executor levels.

. Stagnating Support and High Costs: Open-source support for traditional Hadoop/Hive stagnated (becoming obsolete post-Cloudera acquisition). This forced companies into expensive proprietary commercial licensing agreements and drove up the Total Cost of Ownership (TCO).

. Rigid Scaling Constraints: In HDP, scaling clusters up or down created severe downtime overhead and operational service outages due to a complete lack of dynamic, cloud-native orchestration. YARN was responsible for forming the cluster with combined compute and storage node capabilities, making independent scaling of storage and compute impossible.

Three. The Architecture of BDP two point zero (The Cloud-Native Stack)

Four. Key Infrastructure and Storage Inventions in BDP two point zero

One. Core Architectural Capabilities of Delta Lake

Two. Syntax Invariants and Structural Data Organization

Three. Table Engine Classifications inside BDP two point zero

Four. Housekeeping and Log Retention (VACUUM)

One. BDP two point zero Core Platform Components Mapping

Two. Kubernetes Pool Isolation Architecture (Shared vs. Isolated)

Three. BDP two point zero Network Port and Routing Matrix

Part four: Tenant Config Payloads and Routing Matrix

Two. Tenant Configuration JSON Payloads

A. External DataSource Connections Payload

B. PyExecConfig Payload

C. HdAgentConfig Payload

D. Livy Base Uri Parameters

Three. Routing Dynamics in Hybrid Coexistence Deployments

Part five: Core Workload Exec and Sync Flows

Two. The Telemetry and Observability Pipe

Three. External Data Synchronization (Sync Local and Sync External)

INGESTION FLOW (WORKFLOW TYPE A)

Workflow Type A: External Table to GraphCube Ingestion (Sync Local)

Workflow Type B: GraphCube to External Table Export (Sync External)

Four. Supply Chain Solver (SCS) Execution Pattern

One. Compute Node Pools and Workspace Isolation

Two. Autoscaling Mechanics and Pre-Warming

Three. Spark ParamSet Tuning (Preventing OOM Crashes)

Four. Workload State Telemetry

Five. Troubleshooting and Diagnostics Matrix

A. Jobs Stuck in PENDING

One. The Two-Tier Security Architecture

Two. System Security Access Levels

Three. Operational BDP Roles

Four. Connection and Gateway Authentication Protocols

Part eight: Gurobi Linear Programming Solver on Kubernetes

One. Supported Gurobi Licensing Models

Two. Kubernetes Secrets and Volume Mount Paths

Gurobi Solver Secrets Volume Mount Payload

Three. Operational Execution Invariants

Four. Technical Consultant Readiness Checklist

One. The four-step migration roadmap: Legacy HDP to BDP two point zero

Two. Hybrid Coexistence Deployment Architecture

Three. Structural Multi-Tenant Isolation (Organizational Matrix)

Four. Technical Retrofitting and Legacy Conversions

Overview

An overview of the evolution of the Big Data Platform, including the transition from legacy Hadoop architectures to a cloud-native environment in BDP 2.0. It discusses the challenges faced, the modern technologies integrated, and how these changes enhance data processing efficiencies.

Key Points

1Transition from BDP 1.0 to BDP 2.0 addressed limitations in legacy systems
2The integration of Apache Spark and Delta Lake modernizes data processing
3Kubernetes enables dynamic resource management in cloud environments
4The Big Data Platform eliminates physical Hadoop clusters, enhancing performance
5Delta Lake provides advanced transaction management and data integrity.

Details

Category: Technology and Engineering

PDF

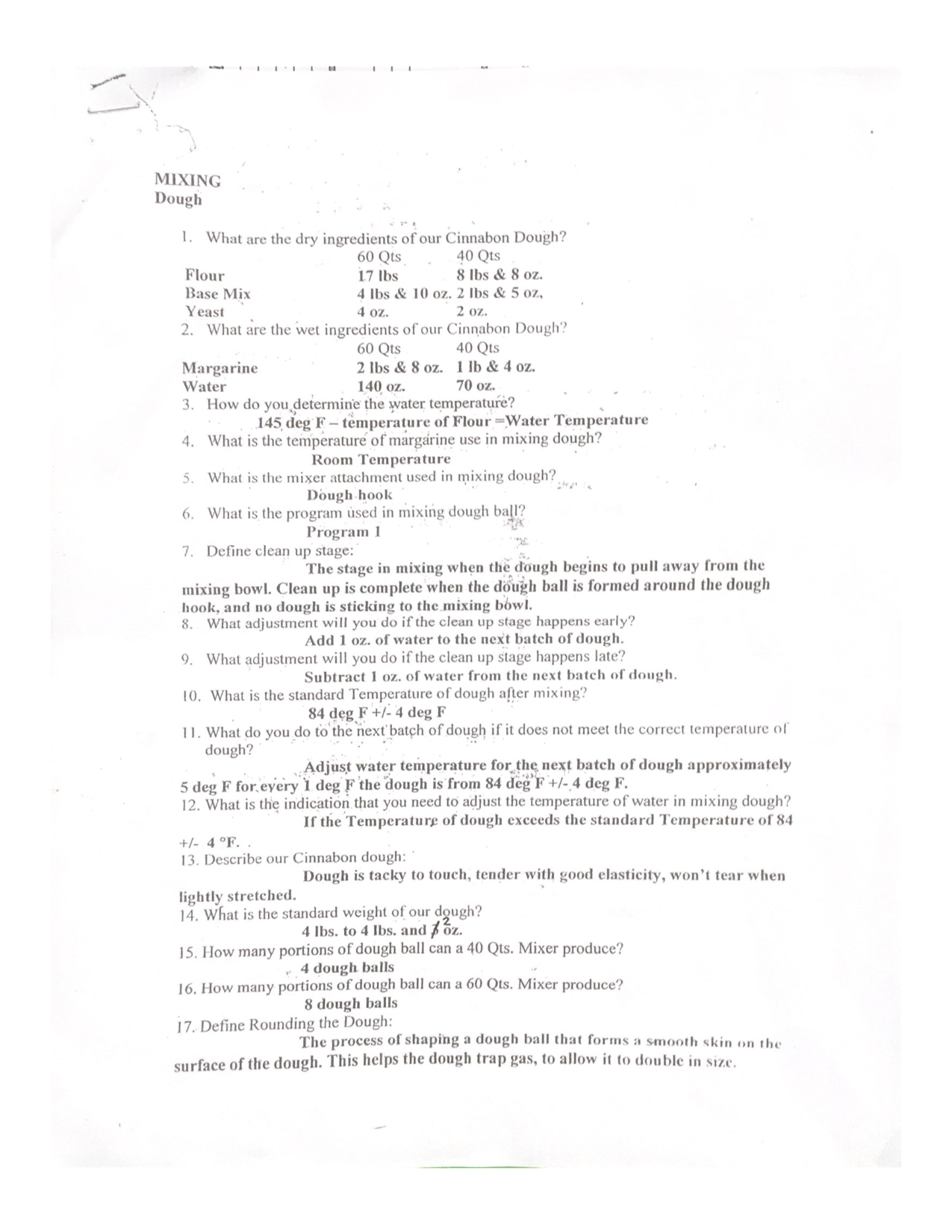

Cinnabon Dough Mixing and Preparation Guide
